Test up to 466Mhz DDR
with RAMCHECK DDR1 Memory Tester

(Please note: RAMCHECK is obsolete and has been superseded by the RAMCHECK LX.)

The RAMCHECK DDR1 memory tester provides an inexpensive, simple way to test high-speed 184-pin DDR modules. It combines the industry-standard RAMCHECK base unit and the popular 184-pin DDR Pro adapter. With optional converters it can test 200-pin laptop PC SODIMMs and 66-pin DDR chips as well. (Note: To test DDR2, you will also need the RAMCHECK 240-pin DDR2 Adapter. Support is also available for testing older memory formats, including SDRAM, EDO, FPM and SIMMs.)
RAMCHECK DDR Pro Tests
DDR 200 266 333 400 433 466
PC 1600 2100 2700 3200 3500 3700

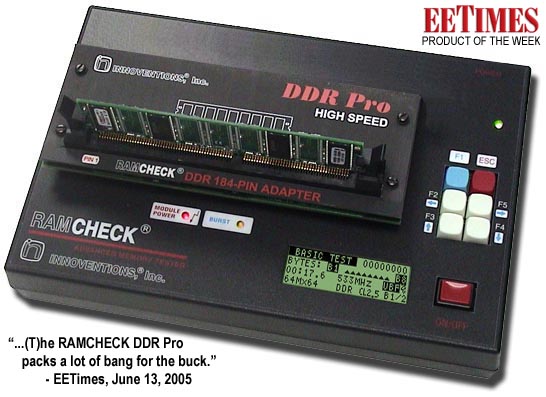

RAMCHECK DDR Pro High Speed Memory Tester
Click here for specifications
RAMCHECK DDR1 is portable and easy to use. Just turn the tester on, insert your memory into the specially-manufactured test socket, and press the start button to begin the test. You won't have read a lengthy manual or program complex setup parameters to use it. (Of course, RAMCHECK DDR1 allows you to define your own testing parameters if your application requires it.)

RAMCHECK DDR2 test adapterThe RAMCHECK DDR1 tester is designed for fast, easy upgrades. Frequent firmware upgrades are available directly from our website. A free PC communication software program is even included to streamline the upgrade process. It includes tools to log your test results and then print them, plus a powerful SPD editor to program/edit/save SPD data.

During the test, the module's size, type and structure are automatically detected. The Basic test takes seconds to perform. After pausing for a few seconds, RAMCHECK will then begin more exhaustive Extensive and AutoLoop test phases. You may halt the test process at any time. There is no complex set-up process to hassle with.

Please click here to receive a free product brochure and price list.

The RAMCHECK DDR1 tester includes:

· RAMCHECK* base unit (p/n INN-8668)
· DDR Pro 184p adapter (p/n INN-8668-9)
· Universal 240/100VAC switching power supply
· Serial cable
· Windows PC Interface (Includes a detailed RAMCHECK manual and PC software programs for printing test results and editing SPD files. The PC Interface is not required to use RAMCHECK.)
· Printed manual
· Rugged carrying case
· Limited 1-year warranty
* Does not support older SDRAM, EDO or FPM memory formats.

Current RAMCHECK DDR users: If you own the older 333Mhz RAMCHECK DDR adapter (p/n INN-8668-6), you can have your existing adapter converted to the RAMCHECK DDR Pro level at a substantial savings.

The RAMCHECK DDR1 tester will also work with the new RAMCHECK 240-pin DDR II adapter.


Click here to order







With RAMCHECK DDR1 and its optional converters, you can test:
DDR memory DDR modules up to PC466
168-pin SDRAM 200-pin DDR SODIMMs
168-pin SDRAM 66-pin DDR chips

Click here to download the one page spec sheet.

To order, please call INNOVENTIONS at 1 (281) 879-6226, or click here to receive a price list. When ordering, please reference part number INN-8668DDR-PRO.

(Product Note: RAMCHECK DDR1 is the same as the RAMCHECK DDR Pro tester.)
