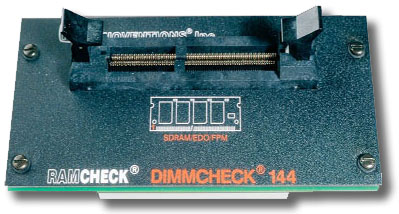

RAMCHECK® 144 Test Adapter

Your memory tester is not complete without the RAMCHECK 144 Adapter, an affordable SDRAM/EDO/FPM SODIMM testing solution for laptop PC memory.

This addition to the RAMCHECK^® line provides a needed solution for testing SDRAM and standard EDO/FPM DRAM 144-pin SO DIMM modules at an affordable price. It works with both the RAMCHECK and RAMCHECK LX.

The RAMCHECK memory tester automatically detects the presence of the RC 144 SODIMM test adapter. The tester also automatically determines if the tested module is SDRAM or standard DRAM without the need for special setup.

In fact, you can test standard DRAM following an SDRAM module, or vice versa, without the need of manual settings. Standard DRAM testing is similar to the regular EDO/FPM test procedure.

The RC 144 Adapter bursts complex pattern tests, into and from the tested module, at a true 133MHz (or faster) synchronous rate. The automatic test provides the tested module's size, voltage, frequency, and type. RAMCHECK's internal 184MHz test engine verifies that the tested module can accept the various mode commands, including CAS latency of 1, 2, and 3, sequential, or interleave type bursts at different lengths, and the single write mode. It further verifies interleaved bank operation.

The RAMCHECK 144 Adapter is available now and works with any RAMCHECK base unit equipped with the legacy SDRAM support option.

To receive pricing and further information about RAMCHECK memory testing products, please click here, or call INNOVENTIONS at (281) 879-6226.

When ordering, please reference part number INN-8668-1.
