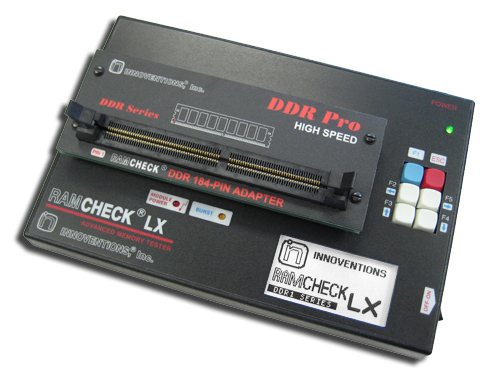

RAMCHECK LX DDR1 Memory Tester

Fast, reliable memory testing for DDR1 DIMMs

USB The RAMCHECK LX DDR (part number INN-8686-DDR1) combines the powerful RAMCHECK LX base tester with the high-speed DDR Pro 184-pin adapter. Designed to help your bottom line, the RAMCHECK LX DDR memory tester features a powerful high-frequency test engine, modular design and proven test algorithms that give you the power to do superior memory testst at a surprisingly affordable price. It also works with the DDR3 240-pin and 200-pin DDR2 adapters.

                        DDR2 memory tester

Please send me more info
Our team will contact you as soon as possible.

Message has been sent! x

view specs The RAMCHECK LX DDR is expandable. It's compatible with all existing RAMCHECK adapters, allowing current RAMCHECK users to take full advantage of the LX's features and capabilities with no hassles.

RAMCHECK LX requires no setup to use. Just turn the RAMCHECK LX on, insert a memory module into the test socket and then press the start button. That's all it takes!

See how easy it is to use RAMCHECK LX DDR1 for yourself:

As you can see, RAMCHECK LX DDR is modular and very user friendly. Don't let RAMCHECK LX's small size fool you! The RAMCHECK LX DDR memory tester is loaded with state-of-the-art electronic components. In fact, RAMCHECK LX DDR has features commonly found in testers costing up to 10 times more!

Introducing the RAMCHECK LX DDR1

DDR3 RAMCHECK LX DDR1 features a large vivid display measuring 2.7" x 1.43" (69mm x 36.5mm). Easily viewable at an angle, from 3-4 feet away. Seen here is the startup screen once the RAMCHECK LX DDR1 is turned on.
 Basic Test
                              Basic Test Basic Test screen shows the size, the speed, the voltage, the test pattern, the module's bank and the CAS Latency. This example shows testing at 400MHz with an automatic setting of CAS Latency to the default value of CL=3 for this frequency.
                              Basic Test OK Successful test phases conclude with a clear 'Pass' message and with distinguishing sound tones. Important parameters are shown in this screen, followed by a detailed test results summary screen.
  Test Results
RAMCHECK test log summary Test results summary screens provide a wealth of information after each test phase. All summary screens are also added to the Test Log.
RAMCHECK LX Test Log Test Log collects and retains all intermediary test results while the memory devices undergo all of the test phases. The Test Log remains until a new test is initiated. The Test Log may be uploaded to a PC for printing via the USB interface. You can also save the file.
 Extensive Test
RAMCHECK LX extensive test The EXTENSIVE Test performs various tests to establish memory quality.
voltage cycling VOLTAGE CYCLING performs tests under allowable voltage deviations from the recommended VDD setting.
                              Test MODE Test identifies various operational parameters of the device, including different bursts lengths and CAS latency settings.
Voltage Bounce VOLTAGE BOUNCE tests data retention during voltage variation between read and write.
March Up/March Down MARCH UP/DOWN reveals adjacent cell interference problems.
Chip Heat Mode CHIP HEAT MODE tests at elevated operating temperatures.
Autoloop AUTO LOOP tests memory with endless pattern changes. Great for burn-in testing.
RAMCHECK LX Test Log The RAMCHECK LX provide advanced setup features. Certain timing parameters may be selected graphically as shown here.
                              on the fly Make changes "on-the-fly" to test parameters with the push of a button.
   SPD Editor
RAMCHECK LX Test Log The device's SPD can be conveniently viewed, edited and programmed on the RAMCHECK LX. You can also use our advanced SPD features in the PC RAMCHECK LX communications program.

Test procedures with the RAMCHECK LX follow the same flow as the current RAMCHECK model. Each module's size, structure, and type are automatically detected, without the need for user's setup. The test flow follows our standard Basic Test, Extensive Test, and Auto-Loop process. Tests are very fast.

The RAMCHECK LX DDR1 can also be purchased in the popular combination packages RAMCHECK LX DDR2/DDR1 (p/n INN-8686-DDR3+2), and the RAMCHECK LX DDR3/DDR2/DDR1 (p/n INN-8686-DDR321).

RAMCHECK LX DDR1 Specifications:

Dimensions: 9.5"x6.3"x2.5".
Net Weight: @4 lbs.
Part number: INN-8686-DDR1

The RAMCHECK LX DDR1 is a discounted package which includes:

· RAMCHECK LX base tester, p/n INN-8686
· RAMCHECK DDR Pro adapter, p/n INN-8668-9 · A USB cable
· CD Companion (includes detailed RAMCHECK LX Manual & PC programs)
· 50-page printed manual
· A carrying case

The RAMCHECK LX manual and addendum are available online.

Please click here for pricing and further information, or call INNOVENTIONS at 1 (281) 879-6226. When ordering, please reference part number INN-8686-DDR1
