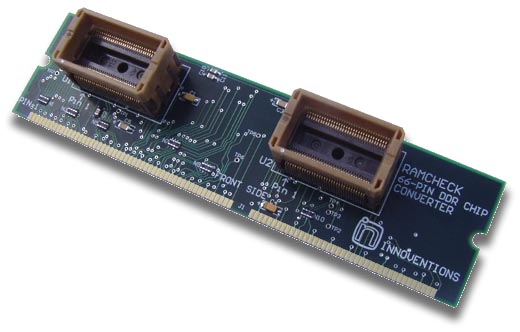

RAMCHECK® 66-pin DDR Chip Converter

You can test one or two chips simultaneously (the two chips must be of same type). The RAMCHECK tester automatically detects the presence of the converter, indicating "RAMCHECK DDR SERIES" during power on. The chip's size, structure, and type are automatically detected. No special setup is necessary. Test flow of the DDR modules follows our standard Basic Test, Extensive Test, and Auto-Loop process. Since the test flow is similar to the RAMCHECK test flow for SDRAM TSOP chips, there is no need for special training.

Specifications

• Supports Burst Length of 2, 4, and 8.
• Supports CAS LATENCY of 2, 2.5, and 3.
• Clock frequencies: 200MHz, 233MHz, 266MHz, 300MHz, 333MHz, 360MHz, 400MHz, 433MHz and 466MHz.
• True 2.5V testing. Automatic 2.6V adjustment for 400MHz tests. User selected voltage in the 2.20V-3.00V range.
• Controlled Vtt for true STTL-2 compatibility.
• One or two chips simultaneous testing.
• The converter also includes fourteen A13..0 address lines and two BA1..0 bank select address lines to support future larger DDR chips.

Click here to view the RAMCHECK 66-pin DDR Chip Converter manual.

To receive pricing and further information about RAMCHECK memory testing products, please click here, or call INNOVENTIONS at (281) 879-6226.

When ordering, please reference part number INN-8668-9-2.
