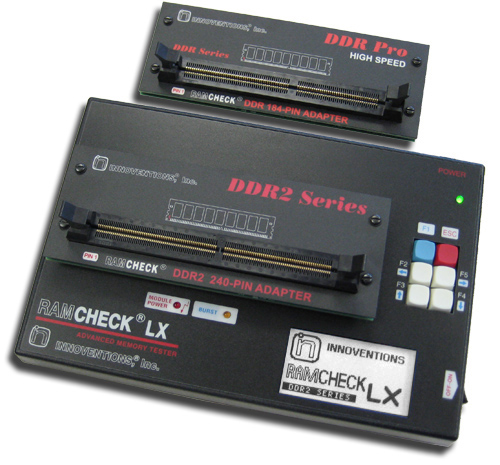

RAMCHECK LX DDR2/DDR1 Memory Tester
The RAMCHECK LX DDR2/DDR1 (part number
INN-8686-DDR2+1) is our "combo" tester for DDR2 and DDR1
DIMMs that comply with Jedec standards. Designed to help
your bottom line, RAMCHECK LX DDR2/DDR1 provides you with
memory tests that are fast and hassle-free. It also works with the DDR3 240-pin adapter.
The RAMCHECK
LX DDR2/DDR1 tester is compatible with all existing
RAMCHECK adapters, including the DIMMCHECK 168 adapter for
testing PC133/100/66 SDRAM. To switch from testing one
memory format to another, just swap out the adapters. You
can also upgrade RAMCHECK LX DDR2/DDR1 in the field, with
free firmware upgrades that you can download from our
website. A PC communication program is also included which
allows you to print and log the test results, plus
store/edit/program the module's SPD information.
RAMCHECK LX requires no setup to use. Just turn the RAMCHECK LX on, insert a memory module into the test socket and then press the start button. That's all it takes!
See how easy it is to use RAMCHECK LX DDR2/DDR1 for yourself:
RAMCHECK LX DDR2/DDR1 is both modular and very user friendly. In fact, RAMCHECK LX DDR2 includes features found in testers that cost 10 times more!
 |
RAMCHECK LX DDR2 features a large vivid display measuring 2.7" x 1.43" (69mm x 36.5mm). Easily viewable at an angle, from 3-4 feet away. Seen here is the startup screen once the RAMCHECK LX DDR2 is turned on. |
| Basic Test | |
 |
Basic Test screen shows the size, the speed, the voltage, the test pattern, the module's bank and the CAS Latency. This example shows testing at 667MHz with an automatic setting of CAS Latency to the default value of CL=4 for this frequency. |
 |
Successful test phases conclude with a clear 'Pass' message and with distinguishing sound tones. Important parameters are shown in this screen, followed by a detailed test results summary screen. |
| Test Results | |
 |
Test results summary screens provide a wealth of information after each test phase. All summary screens are also added to the Test Log. |
 |
Test Log collects and retains all intermediary test results while the memory devices undergo all of the test phases. The Test Log remains until a new test is initiated. The Test Log may be uploaded to a PC for printing via the USB interface. You can also save the file. |
| Extensive Test | |
 |
The EXTENSIVE Test performs various tests to establish memory quality. |
 |
VOLTAGE CYCLING performs tests under allowable voltage deviations from the recommended VDD setting. |
 |
MODE Test identifies various operational parameters of the device, including different bursts lengths and CAS latency settings. |
 |
VOLTAGE BOUNCE tests data retention during voltage variation between read and write. |
 |
MARCH UP/DOWN reveals adjacent cell interference problems. |
 |
CHIP HEAT MODE tests at elevated operating temperatures. |
 |
AUTO LOOP tests memory with endless pattern changes. Great for burn-in testing. |
 |
The RAMCHECK LX provide advanced setup features. Certain timing parameters may be selected graphically as shown here. |
 |
Make changes "on-the-fly" to test parameters with the push of a button. |
| SPD Editor | |
 |
The device's SPD can be conveniently viewed, edited and programmed on the RAMCHECK LX. You can also use our advanced SPD features in the PC RAMCHECK LX communications program. |
The test process for the RAMCHECK LX DDR2 follows the same test flow as the older RAMCHECK model. Each module's type, size, and structure are automatically detected, and the test flow follows our standard Basic Test, Extensive Test, and Auto-Loop process. (Please see this page for information about DDR2 fully-buffered FB-DIMM devices.)
The RAMCHECK LX DDR2 can also be purchased in the popular combination packages RAMCHECK LX DDR3/DDR2 (p/n INN-8686-DDR3+2), and the RAMCHECK LX DDR3/DDR2/DDR1 (p/n INN-8686-DDR321).
Dimensions: 9.5"x6.3"x2.5".
Net Weight: @4 lbs.
Part number: INN-8686-DDR2+1
The RAMCHECK LX DDR2/DDR1 is a discounted package which
includes:
· RAMCHECK LX base
tester, p/n INN-8686
· 240-pin DDR2
adapter, p/n INN-8668-15
· 184-pin DDR
adapter, p/n INN-8668-9
· A universal 240/100VAC switching power supply
· A USB cable
· CD Companion (includes detailed RAMCHECK LX Manual &
PC programs)
· 50-page printed manual
(Also available is a discounted RAMCHECK LX package
containing the DDR4, DDR3 and DDR2 DIMM adapters.
Reference part number INN-8686-DDR432).
Please
click here for pricing and further information, or
call INNOVENTIONS at 1 (281) 879-6226. When ordering,
please reference part number INN-8686-DDR2+1.
