NON-STANDARD 72-P ADAPTERS

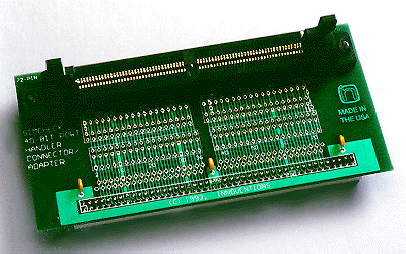

Various computer manufacturers have come out with non-standard 72-pin SIMM modules. These are similar to the JEDEC standard but have some variation which make it difficult to support directly on the 40-BIT PORT. As a generic solution, we offer the 40-BIT PORT CUSTOMIZED Adapter (p/n INN-8484-1). Customers purchasing this adapter should have the equipment and knowledge to wire the Adapter for their needs.

INNOVENTIONS constantly monitors the market and identify such non-standard modules which achieve some significant presence in the market. We support such modules with new off-the-shelf, plug-n-play adapters.

The following are off-the-shelf adapters which are available for non-standard 72-pin SIMM modules:

• HP WORKSTATION ADAPTER: This adapter tests the 36-bit, 72-pin SIMM modules used in the HP Workstation. (p/n INN-8484-7).
• IBM 39-BIT ECC SIMM ADAPTER: This adapter tests the 39-bit, 72-pin ECC SIMM modules used in the IBM PS/2 Server 95, PS/2 Model 76, 77 and other IBM computers. (p/n INN-8484-8).

IMPORTANT NOTE: All the adapters mentioned in this section require the SIMCHECK PLUS.

Required EPROM Version: 2.34 or above.
